Posts Tagged ‘SolidWorks’

Successful Flight of Unmanned Aircraft System

Wednesday, October 26th, 2011

3DVision customer SelectTech GeoSpatial is doing some AMAZING things that I just had to share with you.

Just a few weeks ago SelectTech GeoSpatial’s Advanced Manufacturing Facility Technical Team in Springfield, Ohio launched a successful test flight of an unmanned aircraft system (UAS).

The UAS was designed and built with SolidWorks and a Dimension 1200 3D printer. This is the first non-government built aircraft of its kind.

The aircraft has a wingspan exceeding 4 feet and weighs 5.3 pounds. Best part, it was made entirely from ABSplastic. Powered by an electric motor and lithium polymer batteries, it flew in winds in excess of 25 knots. The pilot, Jad Lowrey said, “it took off very smoothly and handled well even in high wind”.

The aircraft was designed and engineered by Frand Beafore, Executive Director of SGAMF, and Beth Galang, Chief Designer. Galang indicated “this design and build system revolutionizes the product development process – not to mention speed to delivery”.

The initial flight trials were made at the Springfield-Beckley airport under The Academy of Model Aeronautics (AMA) flight rules.

The combination of the amazing design team at SelectTech and the supported solutions of SolidWorks and Dimension 3D printing is a great example of how anything is possible.

For more information on SelectTech, visit their website at http://www.sgamf.com/

Aero2

Carrie Cavanaugh

Carrie Patrick
Marketing Manager
3DVision Technologies

SolidWorks ‘Tip of the Day’ – Complete List

Tuesday, October 25th, 2011

If you come to this blog to learn tips and tricks, you’ve just hit the jackpot. Have you ever noticed those little tips in the lower right hand corner of the ‘SolidWorks Resources’ tab of your task pane? Have you ever clicked the ‘Next Tip’ link a countless amount of times because you just couldn’t get enough?

tip-of-the-day

Well, this is quite a spoiler to anyone that wakes up in the morning overwhelmed with curiosity of what each day’s SolidWorks tip is going to be, but here’s the complete list. Just be aware that this list was pulled from a 2012 installation, so there is exclusive 2012 SolidWorks functionality referenced in some of the tips.  Enjoy all 163 of them!

Jordan Tadic

Jordan Tadic

Application Engineer, CSWE

3DVision Technologies

follow me @TadicWorks

2012: Mouse Gestures that Save Time

Wednesday, October 5th, 2011

I must confess, ever since mouse gestures were introduced a couple of years ago, I haven’t been using them.  The truth is that I’m too hooked on keyboard shortcuts.  Why try to do everything with your right hand when your right (on the mouse) and left hand (on the keyboard) can work together in perfect harmony?  Not only that, but you also had to memorize exactly where each mouse gesture command resided in each of the modeling states (Part, Assembly, and Drawing).  Much too hard for my scrambled mind to manage.

Well, SolidWorks 2012 SP0 (which was officially released earlier this week) has introduced an enhancement that will probably fly under most peoples’ radars, but it will finally get me using mouse gestures on a daily, hourly, minutely, and even secondly basis.  The enhancement is simple – you can now assign the ‘OK’ and ‘Cancel’ commands as mouse gestures (you also now have the ability to assign custom macros to gestures).  The ‘OK’ command as a mouse gestures saves me from stumbling my left hand all the way across my keyboard to the ‘Enter’ key which may or may not have been recognized as the ‘OK’ shortcut.

This enhancement is too great to be overlooked.  If mouse gestures were too much trouble for you to use in the past, try giving my ultra-simplistic mouse gesture mapping a try in 2012.

mouse_gestures

Jordan Tadic

Jordan Tadic

Application Engineer, CSWE

3DVision Technologies

follow me @TadicWorks

A Few Drawing Tips

Monday, September 26th, 2011

Here are a few drawing tips that might help you out.

Save a rotated 3D view

  • When you go to View>Modify>3D Drawing View, you can choose any view and rotate it any direction.  When you choose a view that you like, it will stay like that.  That way you can get a great view on the drawing with a short amount of time.

Combine notes

  • If you have multiple notes on your drawing but you want to combine them, before you would need to copy and paste the text.  All you really need to do is just drag and drop one note to another.  They get combined.  If the main note is numerically indented, when you drop the other note on it, it will follow the same order.

Edit multiple dimensions at once

  • If you select a bunch of dimensions, you can edit them all at once.  You can add tolerance information, text, precision, etc.

I hope these tips help keep you productive.  If you have any questions about these, please contact 3DVision.

Josh Spencer

Josh Spencer
Application Engineer
3DVision Technologies

Simplified (McMaster-Carr) Parts in Assemblies

Wednesday, August 31st, 2011

The following golden rule applies to 99% of you out there…

Never include fasteners with modeled threads in your assemblies.

This is the reason the SolidWorks toolbox comes with three options for thread display when inserting fasteners into your assemblies: Simplified, Cosmetic, and Schematic.  The popular and recommended choice is ‘Cosmetic‘ – a healthy combination of detail and efficiency.

toolbox-thread-options

There are quite a few factors that can contribute to clunky and inefficient assembly models, but two very obvious culprits are the quantity/complexity of features and surfaces.  You can apply this concept to any type of model, but modeled threads are a perfect example to discuss both of these slow downs.  Though there are times when it makes sense to model threads within a part file, it’s rare that those threads are needed within an assembly file.

One of the coolest things about McMaster-Carr (besides their same day delivery of just about anything you can ever dream of) is that they offer 3D models of a majority of their products in a native SolidWorks file (i.e. feature tree, dimensions, and relations are included).  McMaster-Carr customers with SolidWorks have a huge advantage over the rest, because they’ll be able to quickly edit these files however they’d like.  Here’s an example…

  • Download a 1” long ¼-20 SHCS from McMaster-Carr and notice that the part comes fully equipped with modeled threads.
  • Click Tools > Feature Statistics and note the 0.80 second calculated rebuild time.

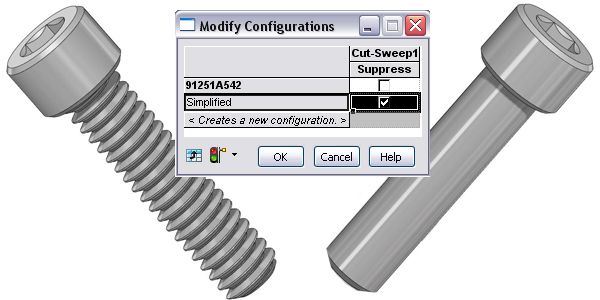

  • Right mouse button (RMB) the “Cut-Sweep1” feature, and select “Configure Feature” from the menu.
  • Create a “Simplified” configuration with the thread cut feature suppressed.

  • Run the Feature Statistics tool one more time and you’ll see a 0.15 second rebuild time. Just by removing one feature, we managed to cut the rebuild time to less than a fifth of what it was.  This goes a very long way inside an assembly where many of these fasteners can exist.

Obviously, you can make “Simplified” configurations for any type of model (not just threaded fasteners).  You can suppress any type of feature that is not required to be present in the assembly (complex features, fillets, chamfers, etc.).  This is a great way to speed up large assembly performance.  All you have to do is activate the “Simplified” configuration of all the part files within an assembly.  “How?”, you might ask…

  • Click File > Open within SolidWorks and browse to an assembly file.
  • Before opening it, click the “Advanced” check box.
  • When you click the “Open” button, select the following options on the pop-up menu.

simplified-configurationOnce you click OK, SolidWorks will find any part within the assembly (regardless of the levels of sub-assemblies) that has a “Simplified” configuration and activate it.  Simple (no pun intended)!  Why not create a simplified configuration for every part file?

Jordan Tadic

Jordan Tadic

Application Engineer, CSWE

3DVision Technologies

follow me @TadicWorks

Update Properties from BOM

Monday, August 22nd, 2011

Here’s a tip that you might not know about.  You can update component/sub-assembly properties from a Bill of Materials.  Why would you want to do this?  Well in case you forgot to add the property when you created the component, maybe you didn’t know what it was at that time, or you see you filled out the wrong information.  Now you can add or change the property without opening it up.

All you need to do is double click in the cell of the BOM and then you will get a message about keeping or breaking the link.

Link

You will have to choose “Keep Link” to update the property.  Now whatever you type in the cell will show up in the component’s properties.

Josh Spencer

Josh Spencer
Application Engineer
3DVision Technologies

Instant3D…do you use it?

Monday, July 25th, 2011

Instant3D has been a feature of SolidWorks for years but are you using it?  Maybe the right questions to ask are “what is Instant3D and why would you want to use it?”

Let’s start with the first part of that, “What is Instant3D”.  It lets you quickly create and modify geometry by using drag handles and scales.  You can use Instant3D in parts and assemblies.  To turn it on, select the “Features” toolbar and select “Instant3D” which is on the far right end of the toolbar.

Command

The second part of the question, “Why would you want to use it” is a little more subjective.  If you need to change a dimension, you have the ability to just select the model face which will show the dimensions making it very quick to modify the model.

 Face Select

 This option is great when you are not “sure” of the design and you have some dimensions on the model.  The dimensions have a small blue dot at the end of the extension line which is what you left click and hold on.  Then a scale will show up that you can “drag-n-drop” on for your new dimensional value.

Scale

Another great way that you can use Instant3D is when you want to create an Extrude.  When you are done sketching and exit, select a segment of the sketch which will activate an arrow.

Sketch

This arrow will allow you to drag it away from the model, creating a boss extrude, or into the model creating an extrude cut.

Extrude

This is just the basics of Instant3D.  I suggest you try it out and see how it can help you be more productive.

Josh Spencer

Josh Spencer
Application Engineer
3DVision Technologies

Modeling an iPhone Case in SolidWorks

Thursday, June 30th, 2011
YouTube Preview Image

This is a really quick video demonstrating a basic workflow to create one part that closely references another part utilizing multi-body modeling techniques in SolidWorks 2011.  I created this video for a customer and figured I’d share it with the rest.  Some tips to pay attention to…

  • Don’t judge me on the design, I wanted to keep it simple.  : )
  • Ignore my non-use of the RMB (right mouse button) to exit commands.  I try not to use this shortcut in videos to keep things easier to follow.
  • Leaving the ‘Break link to original part‘ check box in the ‘Insert Part’ command unchecked will allow changes made to the iPhone to propagate to my case design.
  • I do not click in the graphics area to insert the part.  Instead, I simply click the green check mark to have it dropped precisely at the origin of the new part file (this works in assemblies too).
  • I insert a ‘Weldment‘ feature so that my future part features do not automatically ‘Merge result’ and blend the solid bodies together.
  • RMB’ing an edge and selecting ‘Select Tangency‘ can be a big time saver.
  • A lot of times, people forget that you can shell outwards.
  • When working with multi-body part files, always make sure to pay attention to the ‘Feature Scope‘ of your cut features.
  • You can window select multiple corner points when using the ‘Sketch Fillet’ tool.  You can also drag the yellow preview to resize the radius.
  • I could have added the 0.03125″ fillets more quickly by typing “1/32″ and by selecting the top face of the case and the cut face of the ‘Cut-Extrude2′ feature rather than selecting each individual edge.  Selecting a face will always apply a fillet to the face’s perimeter edges.
  • In SolidWorks 2011 SP4, you can accelerate the PhotoView 360 preview rendering by scrubbing your mouse across the areas of interest.

Jordan Tadic
Application Engineer, CSWE
3DVision Technologies
follow me @TadicWorks

Dimension Printed Simulation Verified Blow Off Valve Adapter

Wednesday, June 29th, 2011

Adding a new Blitz Blow Off Valve (BOV) to an aftermarket turbo system lead to no clearance between the valve and the hood of the vehicle.  An adapter was needed to drop the BOV from the high pressure pipe outlet to between the twin cooling fans behind the radiator.



High Pressure Pipe Assembly

High Pressure Pipe Assembly


BOV Adapter

BOV Adapter

The problem statement is as follows:

A custom adapter was developed to accommodate hood clearance.  Before final fabrication out of aluminum a prototype was “printed” using a Dimension Rapid Prototype Printer.  The printed ABS parts are inherently porous and needed to be sealed in order to hold pressure.  The part was dipped quickly  in acetone and then washed thoroughly with soapy water to seal the pores.  The part was then tested to 110 PSI on a test bench before failure.  A second part was then tested on the car.

Because operating pressure is only 10 PSI, a FOS of 10 was provided by the design.

110 PSI Failure

110 PSI Failure

The second consideration is that the BOV is cantilevered off of the high pressure pipe bung .  The BOV weighs approximately 1/8th of a pound. Adding this to the loading still produced a FOS of   5.

Combined Load

Combined Load

Simulation verified the physical test results and showed that the printed part holds up to the design requirements. The printed ABS adapter works so well an aluminum version was never fabricated.  110 passes down the 1/4 mile drag strip, 1000’s of miles, and 4 autocross seasons, and the little plastic adapter keeps on going.

Robert Warren

Robert Warren
Application Support Engineer
CSWP / CSWST / CSWI / CSPS
3DVision Technologies

Are You Ready to Beta?

Monday, June 27th, 2011

I hope you are ready to start Beta testing because it was just released today!!!

How do you become a Beta tester?  You need to log into the customer portal and under user preferences, select to become a Beta tester.  Now you can download and test 2012 and participate in the beta events .  There are many great prizes that you could win if you find bugs in the Beta version of 2012.

Download it today and happy Beta-ing.

Josh Spencer

Josh Spencer
Application Engineer
3DVision Technologies
